Jokari QUADRO Plus

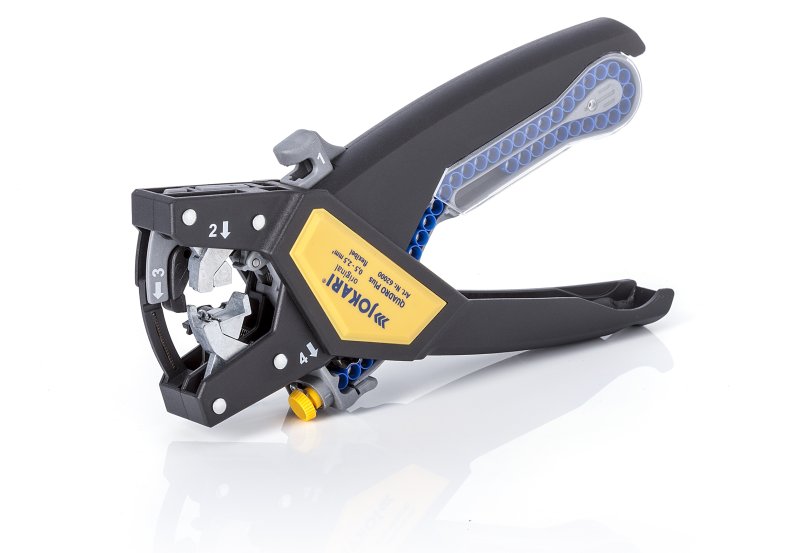

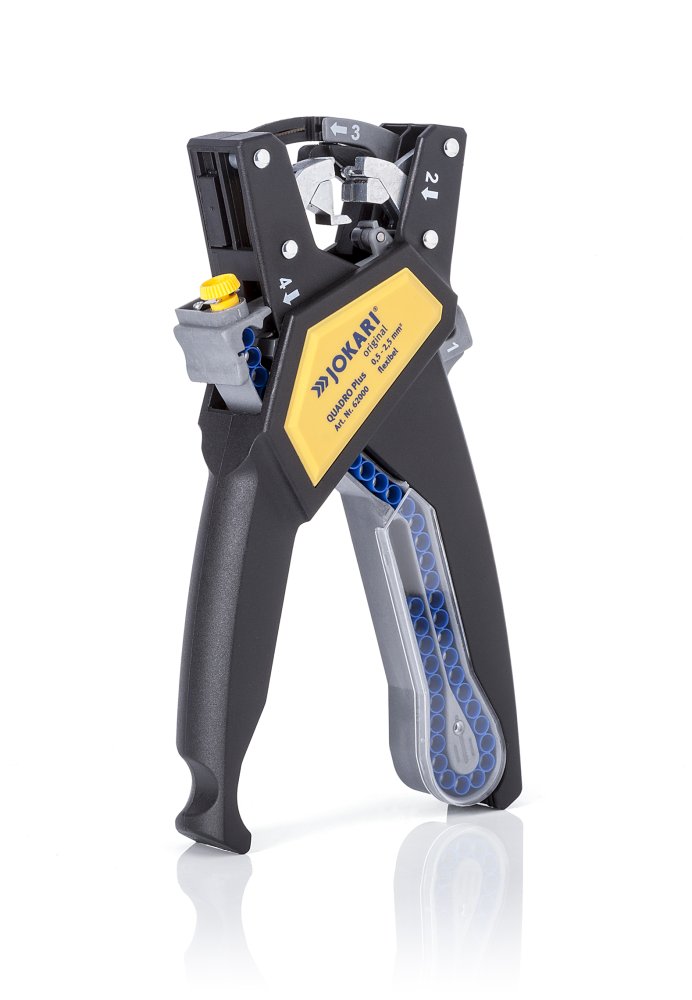

Jokari QUADRO Plus- QUADRO - the unmatched integration of four key functions: cutting - insulation stripping - twisting - crimping, with integrated locking mechanism to ensure an even, high-quality connection, the perfect synthesis of ergonomics and functionality for fast and precise crimping of connector sleeves in strip form.
- The integrated locking mechanism releases when the crimp stamp has reached the final position.
- Quick reloading of connector sleeves by switching magazines enables fast and efficient work with no adjustment necessary for different cross-sections.

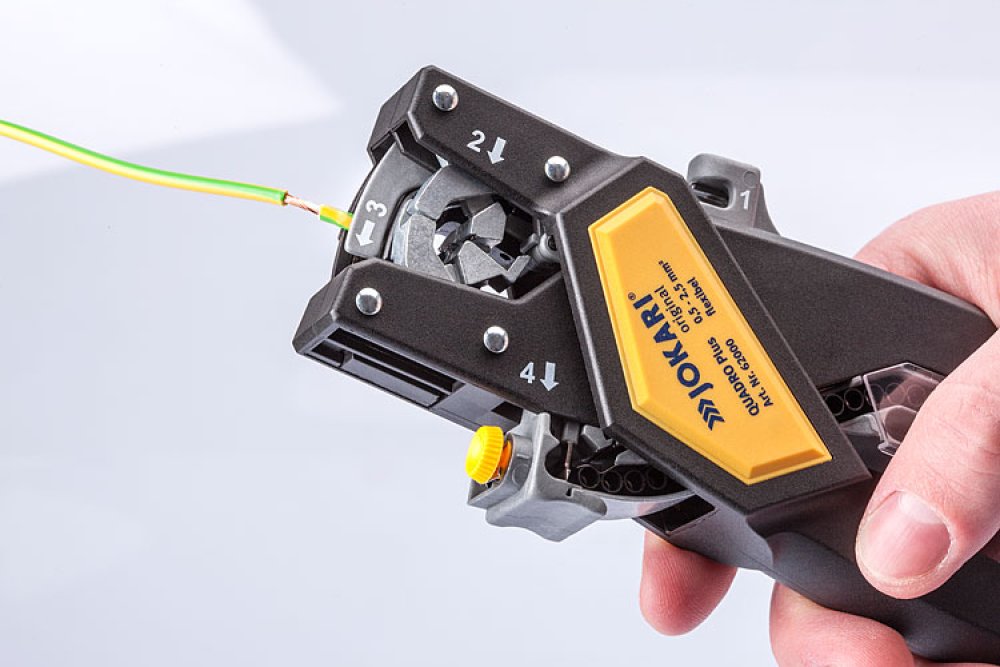

- Working range: wires with insulation made of PVC from 0.5 to 2.5 mm² (AWG 20 - 14).
- Wire stopper for perfect length.
- No adjustment necessary for different cross-sections.

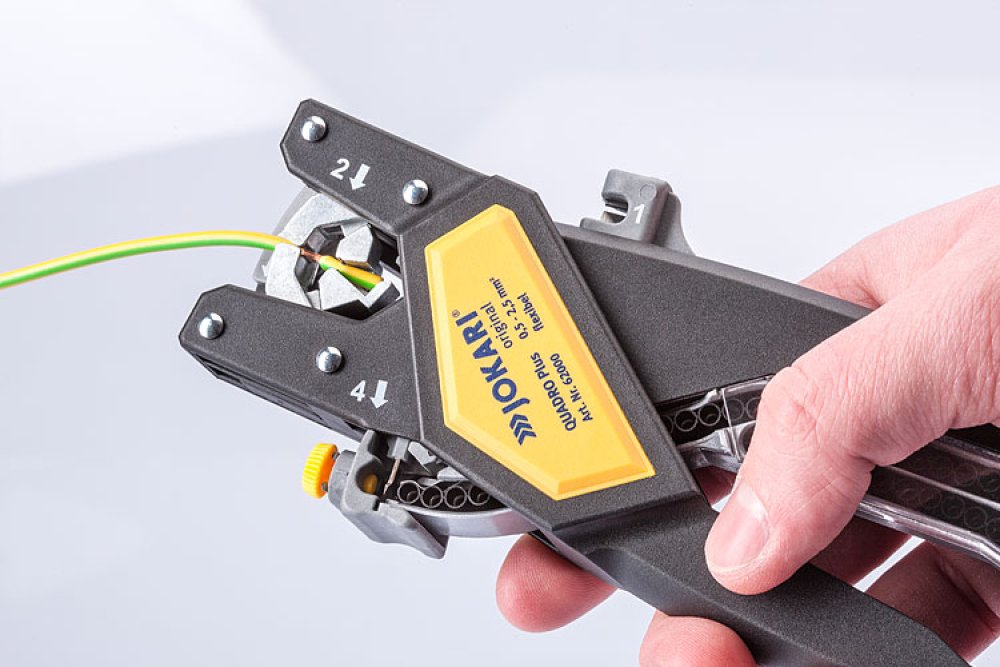

- Twisting prevents the splaying of wire strands to enable easy insertion in connector sleeves.

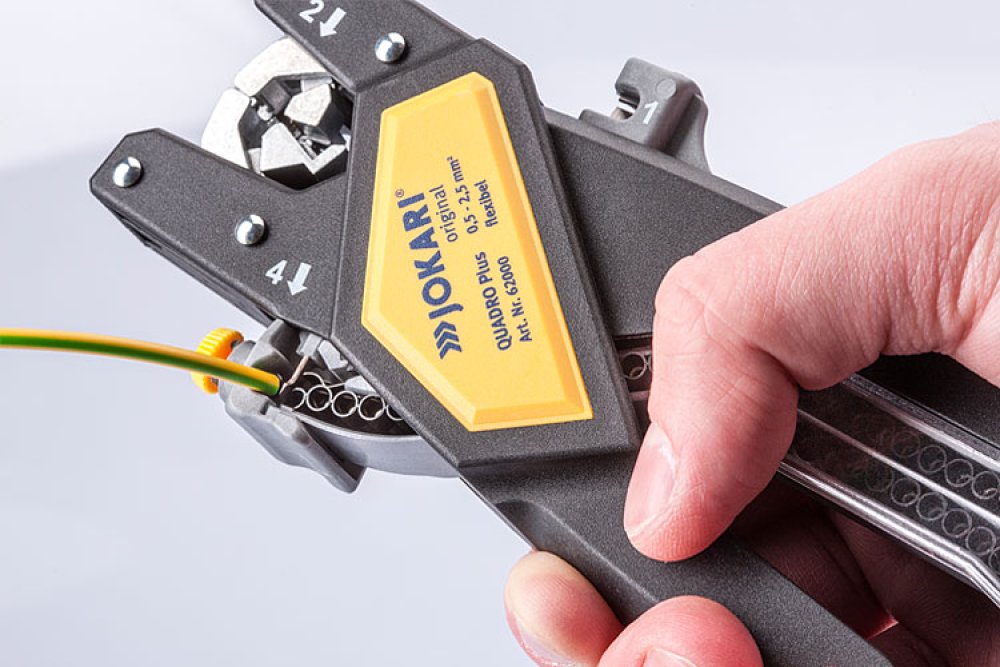

- Crimping of insulated ferrules from sizes 0.5 to 2.5 mm² (AWG 20 - 14) according VDE 0609 Part 1.
Item No. | Title |
 |
 |
|---|---|---|---|
| T60100 | Magazine for JOKARI QUADRO Plus | Magazine | 1 |
| T62000 | Working range: mm² 0,5 | 0,75 | 1 |1,5 | 2,5 AWG 20 | 18 | | 16 | 14 Ergonomic insulation stripping- and crimping plier for stranded wires from 0,5 to 2,5 mm² (AWG 20 - 14) with 4 integrated functions (cutting - insulation stripping - twisting - crimping). NEW The integrated locking mechanism ensures an even, high-quality pressing through monitoring the final position of the crimping punch. The quick reloading connector sleeves by switching magazines enables fast and efficient work. Four functions for fast and precise work: 1 Cutting: Integrated cutter for cutting single conductors up to max. 2,5 mm² (AWG 14). 2 Insulation stripping: Fast and precise insulation stripping of PVC insulations from 0,5 to 2,5 mm² (AWG 20-14). Wire stopper for perfect length. No adjustment necessary for different cross-sections. 3 Twisting: Twisting prevents splaying of the wire to enable easy insertion in connector sleeves. 4 Crimping: Crimping of insulated ferrules from stripes 0,5 to 2,5 mm² (AWG 20 - 14) according VDE 0609 Part 1. With integrated locking mechanism to ensure an even, high-quality pressing. | Set | 1 |
